SXC系列防水测量光幕（防水测量光栅），检测防水光幕、防水光栅。可长期用于水中的水下用光幕。

源头厂家,欢迎来厂考察，订购热线：0573-82300559

◆ 防水等级IP68,可长期用于水下，海水淡水均不受影响，但需要处理依附在上面的水生生物。

◆ 外壳采用3mm厚度PC材料，足够坚固，采用2mm厚度不锈钢支架。

◆ 双层防水处理，透明外管内部的的光幕壳体、电路板均做防水处理。

◆ 可用于水下安全防护、鱼群数量检测及大小尺寸测量等。

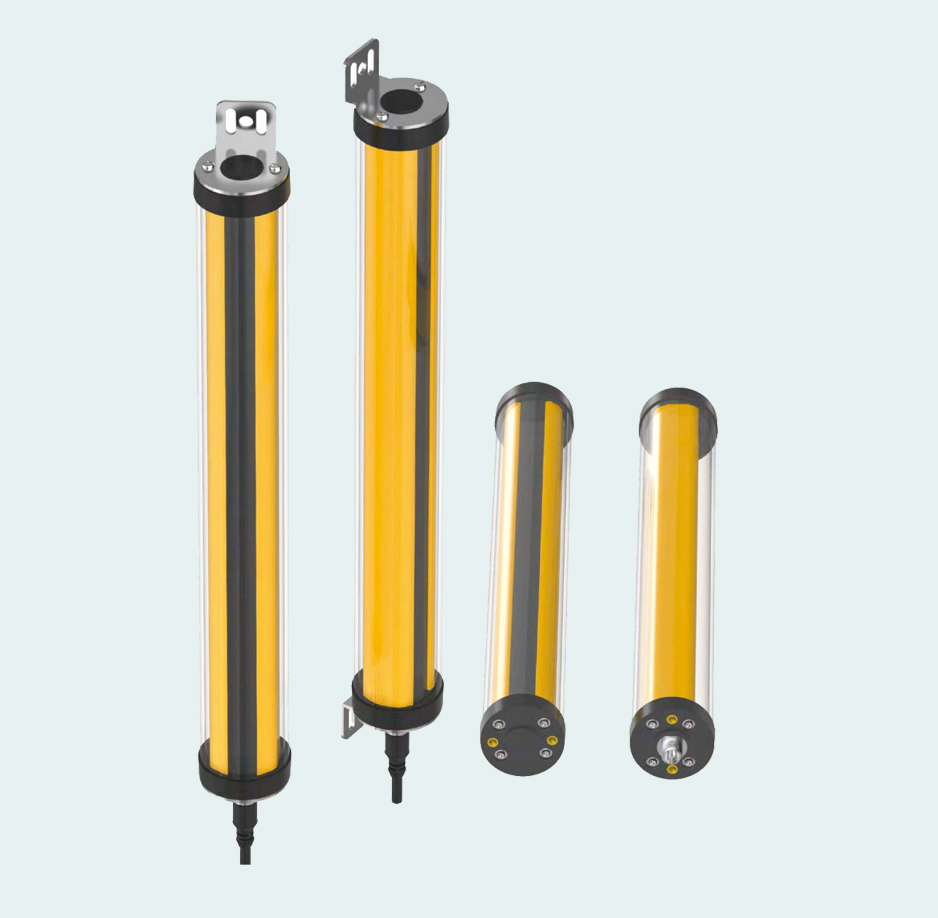

SXC系列水下用测量光幕

测量光幕传感器选型要素如下：

1、光轴间距：也叫光点间距，每两条光之间的间隔距离，每个发光源在电路板上是固定焊接的，所以光轴间距和精度及产品价格息息相关。SXC系列测量光栅光轴间距可选：2.5mm、5mm、10mm、20mm、40mm(其他可定制)。

2、检测范围：约等于光幕长度，检测范围+盲区+端盖+支架长度=测量光幕外形总长，SXC系列盲区为42mm，具体请看选型表。

3、输出方式：RS485输出、4~20mA输出、0-10V输出。

4、对射距离：投光器与接收器之间的安装距离。厂家会根据客户使用要求具体调整对射距离，增加客户使用体验度，如不选择我公司默认：5mm及以下为1米，10mm及以上为3米。

选型手册

SXC2系列选型表：光轴间距2.5mm

光点间距	光点数	检测范围	外形总长	直径	型号:RS485输出	型号: 0-10V输出	型号: 4~20mA
2.5mm	32	80mm	180mm	70mm	SXC2-S80-□	SXC2-Y80-□	SXC2-L80-□
	64	160mm	260mm	70mm	SXC2-S160-□	SXC2-Y160-□	SXC2-L160-□
	96	240mm	340mm	70mm	SXC2-S240-□	SXC2-Y240-□	SXC2-L240-□
	128	320mm	420mm	70mm	SXC2-S320-□	SXC2-Y320-□	SXC2-L320-□
	160	400mm	500mm	70mm	SXC2-S400-□	SXC2-Y400-□	SXC2-L400-□
	192	480mm	580mm	70mm	SXC2-S480-□	SXC2-Y480-□	SXC2-L480-□
	224	560mm	660mm	70mm	SXC2-S560-□	SXC2-Y560-□	SXC2-L560-□
	256	640mm	740mm	70mm	SXC2-S640-□	SXC2-Y640-□	SXC2-L640-□
	288	720mm	820mm	70mm	SXC2-S720-□	SXC2-Y720-□	SXC2-L720-□
	320	800mm	900mm	70mm	SXC2-S800-□	SXC2-Y800-□	SXC2-L800-□
	352	880mm	980mm	70mm	SXC2-S880-□	SXC2-Y880-□	SXC2-L880-□
	384	960mm	1060mm	70mm	SXC2-S960-□	SXC2-Y960-□	SXC2-L960-□

SXC5系列选型表：光轴间距5mm

光点间距	光点数	检测范围	外形总长	直径	型号:RS485输出	型号: 0-10V输出	型号: 4~20mA
5mm	16	80mm	180mm	70mm	SXC5-S80-□	SXC5-Y80-□	SXC5-L80-□
	32	160mm	260mm	70mm	SXC5-S160-□	SXC5-Y160-□	SXC5-L160-□
	48	240mm	340mm	70mm	SXC5-S240-□	SXC5-Y240-□	SXC5-L240-□
	64	320mm	420mm	70mm	SXC5-S320-□	SXC5-Y320-□	SXC5-L320-□
	80	400mm	500mm	70mm	SXC5-S400-□	SXC5-Y400-□	SXC5-L400-□
	96	480mm	580mm	70mm	SXC5-S480-□	SXC5-Y480-□	SXC5-L480-□
	112	560mm	660mm	70mm	SXC5-S560-□	SXC5-Y560-□	SXC5-L560-□
	128	640mm	740mm	70mm	SXC5-S640-□	SXC5-Y640-□	SXC5-L640-□
	144	720mm	820mm	70mm	SXC5-S720-□	SXC5-Y720-□	SXC5-L720-□
	160	800mm	900mm	70mm	SXC5-S800-□	SXC5-Y800-□	SXC5-L800-□
	176	880mm	980mm	70mm	SXC5-S880-□	SXC5-Y880-□	SXC5-L880-□
	192	960mm	1060mm	70mm	SXC5-S960-□	SXC5-Y960-□	SXC5-L960-□
	208	1040mm	1140mm	70mm	SXC5-S1040-□	SXC5-Y1040-□	SXC5-L1040-□
	224	1120mm	1220mm	70mm	SXC5-S1120-□	SXC5-Y1120-□	SXC5-L1120-□
	240	1200mm	1300mm	70mm	SXC5-S1200-□	SXC5-Y1200-□	SXC5-L1200-□
	256	1280mm	1380mm	70mm	SXC5-S1280-□	SXC5-Y1280-□	SXC5-L1280-□
	272	1360mm	1460mm	70mm	SXC5-S1360-□	SXC5-Y1360-□	SXC5-L1360-□
	288	1440mm	1540mm	70mm	SXC5-S1440-□	SXC5-Y1440-□	SXC5-L1440-□
	304	1520mm	1620mm	70mm	SXC5-S1520-□	SXC5-Y1520-□	SXC5-L1520-□
	320	1600mm	1700mm	70mm	SXC5-S1600-□	SXC5-Y1600-□	SXC5-L1600-□
	336	1680mm	1780mm	70mm	SXC5-S1680-□	SXC5-Y1680-□	SXC5-L1680-□
	352	1760mm	1860mm	70mm	SXC5-S1760-□	SXC5-Y1760-□	SXC5-L1760-□
	368	1840mm	1940mm	70mm	SXC5-S1840-□	SXC5-Y1840-□	SXC5-L1840-□
	384	1920mm	2020mm	70mm	SXC5-S1920-□	SXC5-Y1920-□	SXC5-L1920-□

SXC10系列选型表：光轴间距10mm

光点间距	光点数	检测范围	外形总长	直径	型号:RS485输出	型号: 0-10V输出	型号: 4~20mA
10mm	8	80mm	175mm	70mm	SXC10-S80-□	SXC10-Y80-□	SXC10-L80-□
	12	120mm	215mm	70mm	SXC10-S120-□	SXC10-Y120-□	SXC10-L120-□
	16	160mm	255mm	70mm	SXC10-S160-□	SXC10-Y160-□	SXC10-L160-□
	20	200mm	295mm	70mm	SXC10-S200-□	SXC10-Y200-□	SXC10-L200-□
	24	240mm	335mm	70mm	SXC10-S240-□	SXC10-Y240-□	SXC10-L240-□
	28	280mm	375mm	70mm	SXC10-S280-□	SXC10-Y280-□	SXC10-L280-□
	32	320mm	415mm	70mm	SXC10-S320-□	SXC10-Y320-□	SXC10-L320-□
	36	360mm	455mm	70mm	SXC10-S360-□	SXC10-Y360-□	SXC10-L360-□
	40	400mm	495mm	70mm	SXC10-S400-□	SXC10-Y400-□	SXC10-L400-□
	44	440mm	535mm	70mm	SXC10-S440-□	SXC10-Y440-□	SXC10-L440-□
	48	480mm	575mm	70mm	SXC10-S480-□	SXC10-Y480-□	SXC10-L480-□
	52	520mm	615mm	70mm	SXC10-S520-□	SXC10-Y520-□	SXC10-L520-□
	56	560mm	655mm	70mm	SXC10-S560-□	SXC10-Y560-□	SXC10-L560-□
	60	600mm	695mm	70mm	SXC10-S600-□	SXC10-Y600-□	SXC10-L600-□
	64	640mm	735mm	70mm	SXC10-S640-□	SXC10-Y640-□	SXC10-L640-□
	68	680mm	775mm	70mm	SXC10-S680-□	SXC10-Y680-□	SXC10-L680-□
	72	720mm	815mm	70mm	SXC10-S720-□	SXC10-Y720-□	SXC10-L720-□
	76	760mm	855mm	70mm	SXC10-S760-□	SXC10-Y760-□	SXC10-L760-□
	80	800mm	895mm	70mm	SXC10-S800-□	SXC10-Y800-□	SXC10-L800-□
	84	840mm	935mm	70mm	SXC10-S840-□	SXC10-Y840-□	SXC10-L840-□
	88	880mm	975mm	70mm	SXC10-S880-□	SXC10-Y880-□	SXC10-L880-□
	92	920mm	1015mm	70mm	SXC10-S920-□	SXC10-Y920-□	SXC10-L920-□
	96	960mm	1055mm	70mm	SXC10-S960-□	SXC10-Y960-□	SXC10-L960-□
	100	1000mm	1095mm	70mm	SXC10-S1000-□	SXC10-Y1000-□	SXC10-L1000-□
	104	1040mm	1135mm	70mm	SXC10-S1040-□	SXC10-Y1040-□	SXC10-L1040-□
	108	1080mm	1175mm	70mm	SXC10-S1080-□	SXC10-Y1080-□	SXC10-L1080-□
	112	1120mm	1215mm	70mm	SXC10-S1120-□	SXC10-Y1120-□	SXC10-L1120-□
	116	1160mm	1255mm	70mm	SXC10-S1160-□	SXC10-Y1160-□	SXC10-L1160-□
	120	1200mm	1295mm	70mm	SXC10-S1200-□	SXC10-Y1200-□	SXC10-L1200-□
	124	1240mm	1335mm	70mm	SXC10-S1240-□	SXC10-Y1240-□	SXC10-L1240-□
	128	1280mm	1375mm	70mm	SXC10-S1280-□	SXC10-Y1280-□	SXC10-L1280-□
	132	1320mm	1415mm	70mm	SXC10-S1320-□	SXC10-Y1320-□	SXC10-L1320-□
	136	1360mm	1455mm	70mm	SXC10-S1360-□	SXC10-Y1360-□	SXC10-L1360-□
	140	1400mm	1495mm	70mm	SXC10-S1400-□	SXC10-Y1400-□	SXC10-L1400-□
	144	1440mm	1535mm	70mm	SXC10-S1440-□	SXC10-Y1440-□	SXC10-L1440-□
	148	1480mm	1575mm	70mm	SXC10-S1480-□	SXC10-Y1480-□	SXC10-L1480-□
	152	1520mm	1615mm	70mm	SXC10-S1520-□	SXC10-Y1520-□	SXC10-L1520-□
	156	1560mm	1655mm	70mm	SXC10-S1560-□	SXC10-Y1560-□	SXC10-L1560-□
	160	1600mm	1695mm	70mm	SXC10-S1600-□	SXC10-Y1600-□	SXC10-L1600-□
	164	1640mm	1735mm	70mm	SXC10-S1640-□	SXC10-Y1640-□	SXC10-L1640-□
	168	1680mm	1775mm	70mm	SXC10-S1680-□	SXC10-Y1680-□	SXC10-L1680-□
	172	1720mm	1815mm	70mm	SXC10-S1720-□	SXC10-Y1720-□	SXC10-L1720-□
	176	1760mm	1855mm	70mm	SXC10-S1760-□	SXC10-Y1760-□	SXC10-L1760-□
	180	1800mm	1895mm	70mm	SXC10-S1800-□	SXC10-Y1800-□	SXC10-L1800-□
	184	1840mm	1935mm	70mm	SXC10-S1840-□	SXC10-Y1840-□	SXC10-L1840-□
	188	1880mm	1975mm	70mm	SXC10-S1880-□	SXC10-Y1880-□	SXC10-L1880-□
	192	1920mm	2015mm	70mm	SXC10-S1920-□	SXC10-Y1920-□	SXC10-L1920-□

SXC20系列选型表：光轴间距20mm

光点间距	光点数	检测范围	外形总长	直径	型号:RS485输出	型号: 0-10V输出	型号: 4~20mA
20mm	4	80mm	175mm	70mm	SXC20-S80-□	SXC20-Y80-□	SXC20-L80-□
	6	120mm	215mm	70mm	SXC20-S120-□	SXC20-Y120-□	SXC20-L120-□
	8	160mm	255mm	70mm	SXC20-S160-□	SXC20-Y160-□	SXC20-L160-□
	10	200mm	295mm	70mm	SXC20-S200-□	SXC20-Y200-□	SXC20-L200-□
	12	240mm	335mm	70mm	SXC20-S240-□	SXC20-Y240-□	SXC20-L240-□
	14	280mm	375mm	70mm	SXC20-S280-□	SXC20-Y280-□	SXC20-L280-□
	16	320mm	415mm	70mm	SXC20-S320-□	SXC20-Y320-□	SXC20-L320-□
	18	360mm	455mm	70mm	SXC20-S360-□	SXC20-Y360-□	SXC20-L360-□
	20	400mm	495mm	70mm	SXC20-S400-□	SXC20-Y400-□	SXC20-L400-□
	22	440mm	535mm	70mm	SXC20-S440-□	SXC20-Y440-□	SXC20-L440-□
	24	480mm	575mm	70mm	SXC20-S480-□	SXC20-Y480-□	SXC20-L480-□
	26	520mm	615mm	70mm	SXC20-S520-□	SXC20-Y520-□	SXC20-L520-□
	28	560mm	655mm	70mm	SXC20-S560-□	SXC20-Y560-□	SXC20-L560-□
	30	600mm	695mm	70mm	SXC20-S600-□	SXC20-Y600-□	SXC20-L600-□
	32	640mm	735mm	70mm	SXC20-S640-□	SXC20-Y640-□	SXC20-L640-□
	34	680mm	775mm	70mm	SXC20-S680-□	SXC20-Y680-□	SXC20-L680-□
	36	720mm	815mm	70mm	SXC20-S720-□	SXC20-Y720-□	SXC20-L720-□
	38	760mm	855mm	70mm	SXC20-S760-□	SXC20-Y760-□	SXC20-L760-□
	40	800mm	895mm	70mm	SXC20-S800-□	SXC20-Y800-□	SXC20-L800-□
	42	840mm	935mm	70mm	SXC20-S840-□	SXC20-Y840-□	SXC20-L840-□
	44	880mm	975mm	70mm	SXC20-S880-□	SXC20-Y880-□	SXC20-L880-□
	46	920mm	1015mm	70mm	SXC20-S920-□	SXC20-Y920-□	SXC20-L920-□
	48	960mm	1055mm	70mm	SXC20-S960-□	SXC20-Y960-□	SXC20-L960-□
	50	1000mm	1095mm	70mm	SXC20-S1000-□	SXC20-Y1000-□	SXC20-L1000-□
	52	1040mm	1135mm	70mm	SXC20-S1040-□	SXC20-Y1040-□	SXC20-L1040-□
	54	1080mm	1175mm	70mm	SXC20-S1080-□	SXC20-Y1080-□	SXC20-L1080-□
	56	1120mm	1215mm	70mm	SXC20-S1120-□	SXC20-Y1120-□	SXC20-L1120-□
	58	1160mm	1255mm	70mm	SXC20-S1160-□	SXC20-Y1160-□	SXC20-L1160-□
	60	1200mm	1295mm	70mm	SXC20-S1200-□	SXC20-Y1200-□	SXC20-L1200-□
	62	1240mm	1335mm	70mm	SXC20-S1240-□	SXC20-Y1240-□	SXC20-L1240-□
	64	1280mm	1375mm	70mm	SXC20-S1280-□	SXC20-Y1280-□	SXC20-L1280-□
	66	1320mm	1415mm	70mm	SXC20-S1320-□	SXC20-Y1320-□	SXC20-L1320-□
	68	1360mm	1455mm	70mm	SXC20-S1360-□	SXC20-Y1360-□	SXC20-L1360-□
	70	1400mm	1495mm	70mm	SXC20-S1400-□	SXC20-Y1400-□	SXC20-L1400-□
	72	1440mm	1535mm	70mm	SXC20-S1440-□	SXC20-Y1440-□	SXC20-L1440-□
	74	1480mm	1575mm	70mm	SXC20-S1480-□	SXC20-Y1480-□	SXC20-L1480-□
	76	1520mm	1615mm	70mm	SXC20-S1520-□	SXC20-Y1520-□	SXC20-L1520-□
	78	1560mm	1655mm	70mm	SXC20-S1560-□	SXC20-Y1560-□	SXC20-L1560-□
	80	1600mm	1695mm	70mm	SXC20-S1600-□	SXC20-Y1600-□	SXC20-L1600-□
	82	1640mm	1735mm	70mm	SXC20-S1640-□	SXC20-Y1640-□	SXC20-L1640-□
	84	1680mm	1775mm	70mm	SXC20-S1680-□	SXC20-Y1680-□	SXC20-L1680-□
	86	1720mm	1815mm	70mm	SXC20-S1720-□	SXC20-Y1720-□	SXC20-L1720-□
	88	1760mm	1855mm	70mm	SXC20-S1760-□	SXC20-Y1760-□	SXC20-L1760-□
	90	1800mm	1895mm	70mm	SXC20-S1800-□	SXC20-Y1800-□	SXC20-L1800-□
	92	1840mm	1935mm	70mm	SXC20-S1840-□	SXC20-Y1840-□	SXC20-L1840-□
	94	1880mm	1975mm	70mm	SXC20-S1880-□	SXC20-Y1880-□	SXC20-L1880-□
	96	1920mm	2015mm	70mm	SXC20-S1920-□	SXC20-Y1920-□	SXC20-L1920-□

SXC40系列选型表：光轴间距40mm

光点间距	光点数	检测范围	外形总长	直径	型号:RS485输出	型号: 0-10V输出	型号: 4~20mA
40mm	2	80mm	175mm	70mm	SXC40-S80-□	SXC40-Y80-□	SXC40-L80-□
	4	160mm	255mm	70mm	SXC40-S160-□	SXC40-Y160-□	SXC40-L160-□
	6	240mm	335mm	70mm	SXC40-S240-□	SXC40-Y240-□	SXC40-L240-□
	8	320mm	415mm	70mm	SXC40-S320-□	SXC40-Y320-□	SXC40-L320-□
	10	400mm	495mm	70mm	SXC40-S400-□	SXC40-Y400-□	SXC40-L400-□
	12	480mm	575mm	70mm	SXC40-S480-□	SXC40-Y480-□	SXC40-L480-□
	14	560mm	655mm	70mm	SXC40-S560-□	SXC40-Y560-□	SXC40-L560-□
	16	640mm	735mm	70mm	SXC40-S640-□	SXC40-Y640-□	SXC40-L640-□
	18	720mm	815mm	70mm	SXC40-S720-□	SXC40-Y720-□	SXC40-L720-□
	20	800mm	895mm	70mm	SXC40-S800-□	SXC40-Y800-□	SXC40-L800-□
	22	880mm	975mm	70mm	SXC40-S880-□	SXC40-Y880-□	SXC40-L880-□
	24	960mm	1055mm	70mm	SXC40-S960-□	SXC40-Y960-□	SXC40-L960-□
	26	1040mm	1135mm	70mm	SXC40-S1040-□	SXC40-Y1040-□	SXC40-L1040-□
	28	1120mm	1215mm	70mm	SXC40-S1120-□	SXC40-Y1120-□	SXC40-L1120-□
	30	1200mm	1295mm	70mm	SXC40-S1200-□	SXC40-Y1200-□	SXC40-L1200-□
	32	1280mm	1375mm	70mm	SXC40-S1280-□	SXC40-Y1280-□	SXC40-L1280-□
	34	1360mm	1455mm	70mm	SXC40-S1360-□	SXC40-Y1360-□	SXC40-L1360-□
	36	1440mm	1535mm	70mm	SXC40-S1440-□	SXC40-Y1440-□	SXC40-L1440-□
	38	1520mm	1615mm	70mm	SXC40-S1520-□	SXC40-Y1520-□	SXC40-L1520-□
	40	1600mm	1695mm	70mm	SXC40-S1600-□	SXC40-Y1600-□	SXC40-L1600-□
	42	1680mm	1775mm	70mm	SXC40-S1680-□	SXC40-Y1680-□	SXC40-L1680-□
	44	1760mm	1855mm	70mm	SXC40-S1760-□	SXC40-Y1760-□	SXC40-L1760-□
	46	1840mm	1935mm	70mm	SXC40-S1840-□	SXC40-Y1840-□	SXC40-L1840-□
	48	1920mm	2015mm	70mm	SXC40-S1920-□	SXC40-Y1920-□	SXC40-L1920-□
